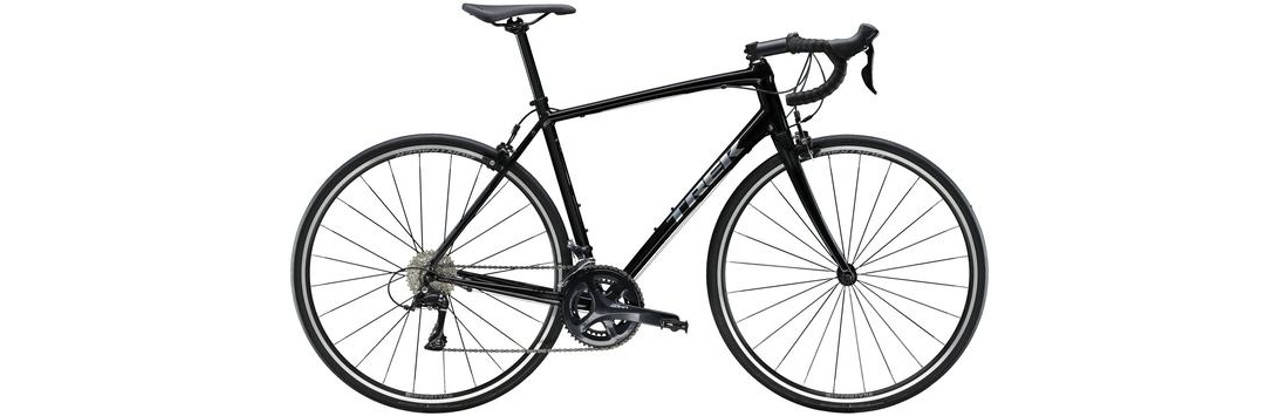

2020 Trek Domane AL3 52cm

Specifications

Frameset
Color Trek Black
Frame 100 Series Alpha Aluminum, hidden fender mounts, DuoTrap S compatible, 130x5mm QR
Fork Domane carbon, straight alloy steerer, fender mounts, 5x100mm QR
Drivetrain
Shifter Shimano Sora R3000, 9 speed
Front Derailleur Shimano Sora R3000, 31.8mm clamp
Rear Derailleur Shimano Sora R3000, long cage, 34T max cog
Crank Size: 50, 52, 54
Shimano Sora R3000, 50/34 (compact), 170mm length
Size: 56, 58, 60, 62
Shimano Sora R3000, 50/34 (compact), 175mm length
Bottom Bracket Shimano RS500, 68mm, threaded external
Cassette Shimano Sora HG400, 11–32, 9 speed
Chain Shimano Sora HG53, 9 speed
Pedal Wellgo nylon body, alloy cage
Weight
Weight 56 – 9.75 kg / 21.5 lbs
Weight Limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
Wheels
Front Hub Formula TK–31 alloy, 5x100mm QR
Rear Hub Formula TK–32 alloy, Shimano 8/9/10 freehub, 5x130mm QR
Rim Bontrager Affinity Disc, Tubeless Ready, 24–hole, 21mm width, presta valve
Spokes 14g aero stainless steel
Tire Bontrager R1 Hard–Case Lite, wire bead, 60 tpi, 700x28c
Components
Saddle Bontrager Arvada Comp, steel rails, 138mm width
Seatpost Bontrager Approved, alloy, 27.2mm, 8mm offset, 330mm length
Handlebar Size: 50, 52
Bontrager Comp VR–C, alloy, 31.8mm, 100mm reach, 124mm drop, 40cm width
Size: 54, 56
Bontrager Comp VR–C, alloy, 31.8mm, 100mm reach, 124mm drop, 42cm width
Size: 58, 60, 62
Bontrager Comp VR–C, alloy, 31.8mm, 100mm reach, 124mm drop, 44cm width
Handlebar Tape Bontrager Gel Cork tape
Stem Size: 50
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length
Size: 52, 54
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
Size: 56, 58
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length
Size: 60, 62
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length
Headset FSA Integrated, sealed cartridge bearing, 1–1/8"
Brake Alloy dual–pivot
